Braille Lightweight Advanced AGM Battery - B3121 - 21lbs
Please ensure your correct model is selected
Does NOT fit your Change Vehicle
Fits your Change Vehicle
Lifetime Replacement Program! Read more here
Product Details
When building a car for the track, one of the most important factors to consider is weight. Stock batteries can weigh up to almost 50 pounds and are unnecessarily large, designed to power a host of systems not normally used in a track car (radios, lighting, etc.). What can you do to cut weight the weight without affecting your car's operation? This is where Braille Battery comes in with their long line of performance lightweight battery options! Designed to provide the highest cranking power possible while being up to 75% lighter, Braille Battery is one of the foremost leaders in automotive racing batteries with nothing but high quality, high output batteries in mind!

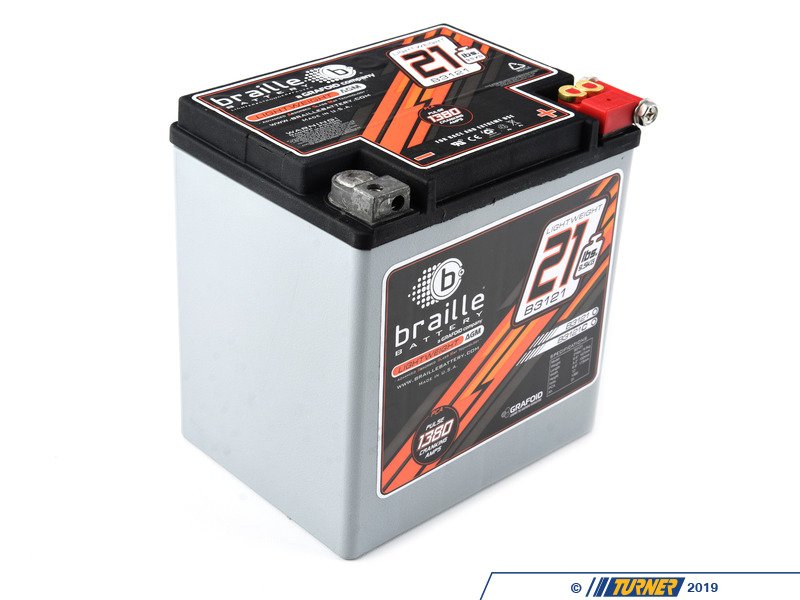

The B3121 battery from Braille is their lightest do-everything battery available, offering 1380 pulse cranking amps that can crank over V8 engines with ease while still coming in at under 22 pounds, half of the weight of a standard Group 34 battery! This is thanks to their Advanced AGM racing technology that allows them to put a ton of power into a very small package.
Physical Specifications:
- BCI Group: All sizes
- Weight: 21lbs / 9.5kg
- Length: 6.6" / 168mm
- Width: 5.2" / 132mm
- Height: 6.8" / 173mm
- Polarity: Right Side Positive
- Terminal Type: Steel terminal block with M6 bolt
Performance Specifications:
- Voltage: 12v
- Recharge Voltage: 14.4V – 14.6V
- Maintenance charge voltage: 13.8V
- 5s Pulse Cranking Amps (PCA): 1380
- 10s PDC: 124
- Amp Hour (Ah): 31
- Watt Hour (Wh): 372
- Life Cycle @ 10% DOD: 3100
- Charging Temperature 0C to 50C
- Discharge Temperature range -40C to +60C
- Storage temperature -40C to +60C
*THIS BATTERY REQUIRES A CUSTOM MOUNTING SOLUTION. The size and weight are significantly smaller than a stock battery and will not be held in place by the stock battery mount*
